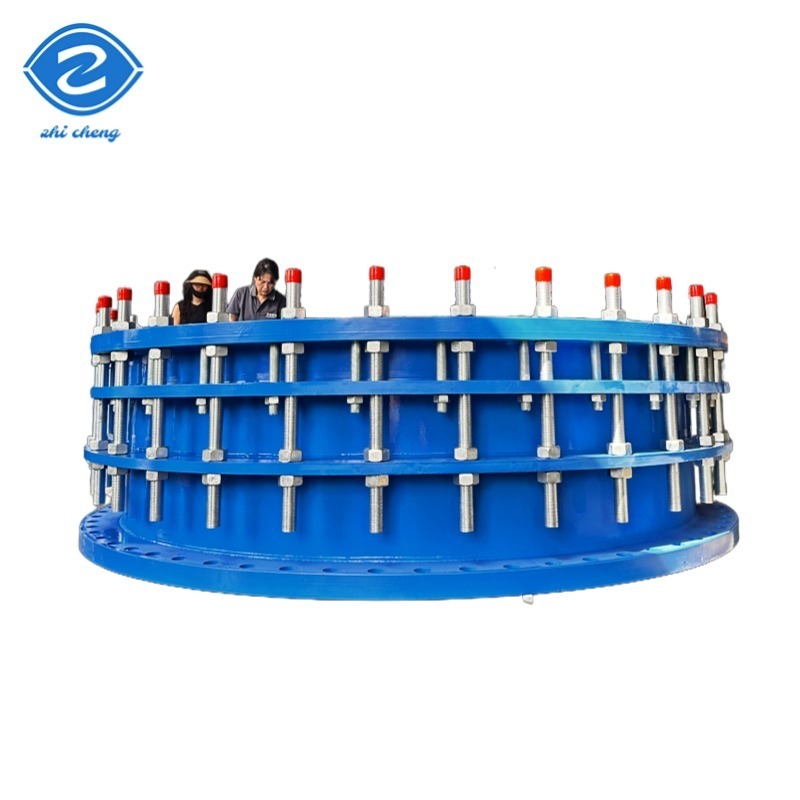

ISO9001 Connection Valve Fittings For Round Head Code Steel Expander Flange

Name: ISO9001 Connection Valve Fittings For Round Head Code Steel Expander Flange
Brand: Henan Zhicheng Valve Fittings Manufacturing Co., Ltd.
SKU: CC2F
Price: 8.00 USD
Availability: InStock

Rincian produk

Tempat asal: Henan, Cina

Nama merek: ZHICHENG

Sertifikasi: CE

Nomor model: CC2F

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: $15.60/sets 1-99 sets

Kemasan rincian: Cetakan pemasangan pipa sambungan pembongkaran flensa baja dikemas dalam kantong gelembung, dimasukk

Waktu pengiriman: 5-8 hari kerja

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram

Menyediakan kemampuan: 10000 set/set per bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  ISO9001 connection valve fittings, round head steel expander flange, double flange limit expansion joint


Jaminan:	1 tahun	dukungan khusus:	ODM, OEM
Teknik:	Pengecoran Penempaan	Koneksi:	Flens
Membentuk:	Setara	kode kepala:	Bulat
Ukuran nominal:	DN25 - DN3000mm	Tekanan kerja:	Dari pn10 hingga pn25
Pengeboran flange:	DIN, ANSI, BS, ISO, JIS, EN 1092	Bahan Flange:	Baja karbon galvanis, baja tahan karat 304,316, dll.
Menggambar:	Menawarkan	Media yang berlaku:	air
Negara ekspor:	Kanada, Amerika, Australia, Chili, Malaysia, Filipina dll	Sertifikat Produk:	ISO9001, WRAS
Merek:	Runtaida	Nama Produk:	Sambungan flensa, sambungan pembongkaran, sambungan ekspansi
Pelabuhan:	Pelabuhan Qingdao atau bisa dinegosiasikan

Jaminan:	1 tahun
dukungan khusus:	ODM, OEM
Teknik:	Pengecoran Penempaan
Koneksi:	Flens
Membentuk:	Setara
kode kepala:	Bulat
Ukuran nominal:	DN25 - DN3000mm
Tekanan kerja:	Dari pn10 hingga pn25
Pengeboran flange:	DIN, ANSI, BS, ISO, JIS, EN 1092
Bahan Flange:	Baja karbon galvanis, baja tahan karat 304,316, dll.
Menggambar:	Menawarkan
Media yang berlaku:	air
Negara ekspor:	Kanada, Amerika, Australia, Chili, Malaysia, Filipina dll
Sertifikat Produk:	ISO9001, WRAS
Merek:	Runtaida
Nama Produk:	Sambungan flensa, sambungan pembongkaran, sambungan ekspansi
Pelabuhan:	Pelabuhan Qingdao atau bisa dinegosiasikan

Deskripsi

ISO9001 Connection Valve Fittings For Round Head Code Steel Expander Flange

Product Description

CC2F type detachable force transmission coupling is composed of slip-on

telescopic coupling, short pipe flange, transmission screw, etc., which is to

install and disassemble, and can transmit pressure thrust and compensate

pipeline errors.

ISO9001 Connection Valve Fittings For Round Head Code Steel Expander Flange 0

Specification

No.	Name	Quantity	Material
1	Valve	1	QT450-10,Q235A,304,316etc.
2	Gasket	1	NBR
3	Follower	1	QT450-10,Q235A,304,316etc.
4	limited short pipe	1	Q235A,304,316etc.
5	stud	n	Q235A,35#,304,316etc.
6	nut	Tn	Q235A,20#,304,316etc.

ISO9001 Connection Valve Fittings For Round Head Code Steel Expander Flange 2

Installation Instructions

Technological process
The dismanting joint is suitable for pipelines with flanges on both sides.

When installing, the installation length of both ends
of the product and flanges can be adjusted. The diagonal fund-raising

can tighten the bolt of the pressure cap evenly, making it
an integral whole with a certain displacement. It is convenient to install

and repair, and it can be adjusted according to the size of the site.

Company Profile

Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment

is complete, with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system

certification and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure

that the delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints,

metal hoses, double flange disassembly joints, flange adapters

ISO9001 Connection Valve Fittings For Round Head Code Steel Expander Flange 4

Why Choose Us

Packing & Delivery

Packing: Inner plastic film packing, outer
standard export wooden case packing.

Shipping: Courier company transport, air freight and sea transport.

It depends on your actual order details and quantity.

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
