SS304 Flange Double Sphere Rubber Expansion Joint with DN25-DN2000 Range for Flexible Pipe Connection

Rincian produk

Tempat asal: Zheng Zhou

Nama merek: ZhiCheng

Sertifikasi: CE

Nomor model: Kxt

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: 3.6

Kemasan rincian: Bubble Wrap, Kotak Kardus, Peti Kayu

Waktu pengiriman: 14 HARI

Syarat-syarat pembayaran: Dibayar Penuh Sebelum Pengiriman

Menyediakan kemampuan: 8000 Piece/Bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              SS304 Flange Rubber Expansion Joint, Double Sphere Design Rubber Expansion Joint, DN25-DN2000 Flexible Pipe Connector


Standar flensa:	DIN, JIS, ANSI, dll.	Ukuran nominal:	DN25 - DN2000
Pemeliharaan:	Rendah	dukungan yang disesuaikan:	ODM, OEM
Kode Kepala:	Setara	Jenis:	Pelebaran tulang sendi
Bahan:	Karet, EPDN, NBR, dll.	Standar Flensa:	DIN, ANSI, JIS, dll.

Standar flensa:	DIN, JIS, ANSI, dll.
Ukuran nominal:	DN25 - DN2000
Pemeliharaan:	Rendah
dukungan yang disesuaikan:	ODM, OEM
Kode Kepala:	Setara
Jenis:	Pelebaran tulang sendi
Bahan:	Karet, EPDN, NBR, dll.
Standar Flensa:	DIN, ANSI, JIS, dll.

Deskripsi

SS304 Flange Double Sphere Rubber Expansion Joint with DN25-DN2000 Range for Flexible Pipe Connection

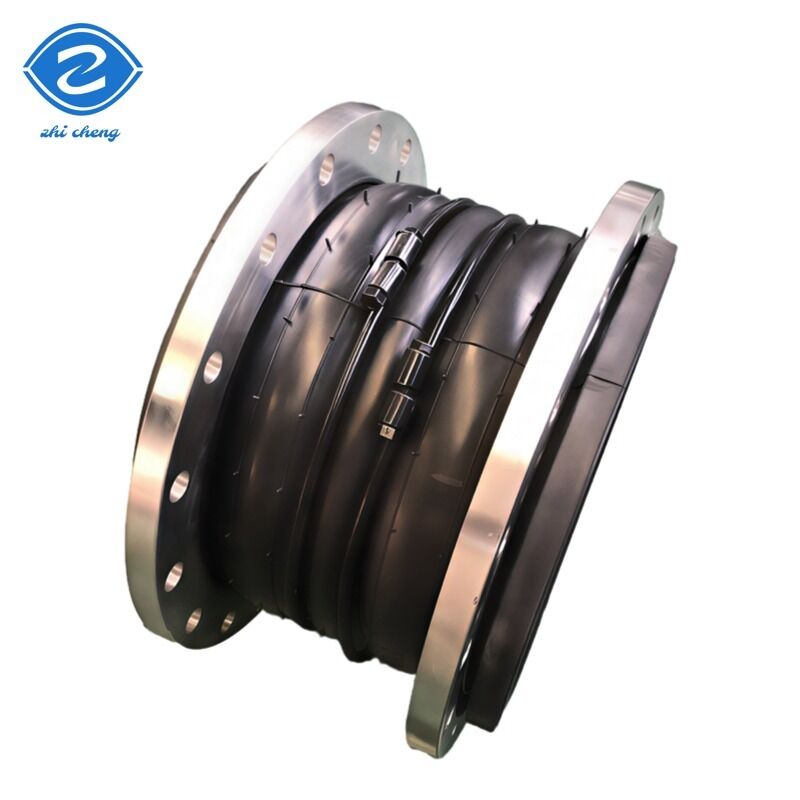

SS304 Flange Double Sphere Rubber Expansion Joint

Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission: Focus on product details, drive innovation, and meet user needs.
Our values: Integrity and standardization, cooperation and win-win

The double-arch expansion joint features precision-molded elastic composite material reinforced with multiple layers of nylon. The arch design enables smooth, turbulence-free fluid flow, making it suitable for handling process fluids containing suspended solids.

Product Specifications

Material Composition

No.	Component	Material
1	Outer/Inner Rubber	NR, NBR, EPDM, SBR, BR etc.
2	Frame	Nylon Card Fabric
3	Pressurized Ring	Steel Wire Strand
4	Flange	Q235 Carbon Steel, 304 Stainless Steel etc.

Technical Conditions

Parameter	Type 1	Type 2	Type 3
Working Pressure (Kg f/cm²)	1.0(10)	1.6(16)	2.5(25)
Explosion Pressure (Kg f/cm²)	2.0(20)	3.0(30)	4.5(45)
Vacuum Value (mmHg)	2.0(20)	86.7(650)	100(750)
Applicable Temperature	-15℃ ~ +80℃ (-30℃~+150℃ special)
Applicable Media	Air, compressed air, water, sea water, hot water, oil, acid and alkali etc.

Main Connecting Dimensions

Nominal Diameter (DN)	Length	Axial Displacement	Horizontal Displacement	Deflexion Angle
32 mm (1¼")	95 mm	Extension: 6mm, Compression: 9mm	9 mm	15°
40 mm (1½")	95 mm	Extension: 6mm, Compression: 10mm	9 mm	15°
50 mm (2")	105 mm	Extension: 7mm, Compression: 10mm	10 mm	15°
65 mm (2½")	115 mm	Extension: 7mm, Compression: 13mm	11 mm	15°
80 mm (3")	135 mm	Extension: 8mm, Compression: 15mm	12 mm	15°
100 mm (4")	150 mm	Extension: 10mm, Compression: 19mm	13 mm	15°
125 mm (5")	165 mm	Extension: 12mm, Compression: 19mm	13 mm	15°
150 mm (6")	180 mm	Extension: 12mm, Compression: 20mm	14 mm	15°
200 mm (8")	210 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
250 mm (10")	230 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
300 mm (12")	245 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
350 mm (14")	255 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
400 mm (16")	255 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
450 mm (18")	255 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
500 mm (20")	255 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
600 mm (24")	260 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
700 mm (28")	260 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
800 mm (32")	260 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
900 mm (36")	260 mm	Extension: 16mm, Compression: 25mm	22 mm	15°
1000 mm (40")	260 mm	Extension: 18mm, Compression: 26mm	24 mm	15°
1200 mm (48")	260 mm	Extension: 18mm, Compression: 26mm	24 mm	15°
1400 mm (56")	350 mm	Extension: 20mm, Compression: 28mm	26 mm	15°
1600 mm (64")	350 mm	Extension: 25mm, Compression: 35mm	30 mm	10°
1800 mm (72")	350 mm	Extension: 25mm, Compression: 35mm	30 mm	10°
2000 mm (80")	420 mm	Extension: 25mm, Compression: 35mm	30 mm	10°
2200 mm (88")	420 mm	Extension: 25mm, Compression: 35mm	30 mm	10°
2400 mm (96")	420 mm	Extension: 25mm, Compression: 35mm	30 mm	10°
2600 mm (104")	450 mm	Extension: 25mm, Compression: 35mm	30 mm	10°
2800 mm (112")	450 mm	Extension: 25mm, Compression: 35mm	30 mm	10°
3000 mm (120")	500 mm	Extension: 25mm, Compression: 35mm	30 mm	10°

For Quick Quotation, Please Provide:

Media type flowing through the rubber expansion joint (water, oil, etc.)
Nominal diameter of rubber expansion joint
Type of rubber expansion joint (equal or reducing shape)
Material of rubber and flange (EPDM, stainless steel, etc.)
Flange standard (ANSI, DIN, etc.)
Nominal pressure (150lb or 300lb)
Length of rubber sphere
Total quantity required

Key Advantages

Superior Pressure Resistance
Spherical structure with reinforced design provides exceptional stability against internal pressure

Vibration & Noise Absorption
Excellent absorption of vibration, noise, and shock

Flexible Movement Compensation
Compensates for elongation, compression, lateral and angular movement

Product Classification

Multiple categories available to meet various application requirements

Packing & Delivery

Shipping Options:

FedEx/DHL/UPS/TNT for samples (Door-to-Door)
By Air or By Sea for batch goods (LCL/FCL)
Airport/Port receiving available
Customer-specified freight forwarders accepted
Negotiable shipping methods

Frequently Asked Questions

Can you make the product as per client's requirement?

Yes, we can manufacture according to your exact requirements.

What are your payment terms?

T/T (30% deposit, 70% balance before delivery), L/C at sight.

Where is your nearest loading port?

Shanghai, Qingdao or Tianjin, China.

How can you guarantee the quality or any warranty?

If any quality problems occur during use, products can be returned or handled according to consumer requests.

Do you accept small quantity orders?

Yes, we accept small quantity orders.

What is your shipment and delivery time?

By sea or air. Normally 7 to 14 days for delivery, depending on order quantity.
